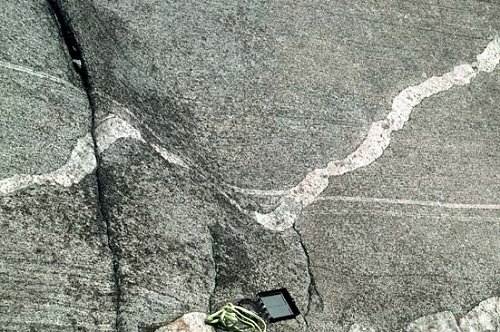

Sheared aplite veins in a deformed granitoid, Ticino, Switzerland.
The two aplite veins had different original orientations and therefore show
different deflections into the shear zone. Nevertheless the sense of deflection
is the same and may be used to deduce the sense of shear in the shear zone.
To find out how these structures are formed click
