Worked solutionWorked solution

1. Construct the branch line for the Ben More and Moine thrusts. You should first identify all the branch points and then join them, testing whether the emergent-buried behaviour is maintained around the complete loop.

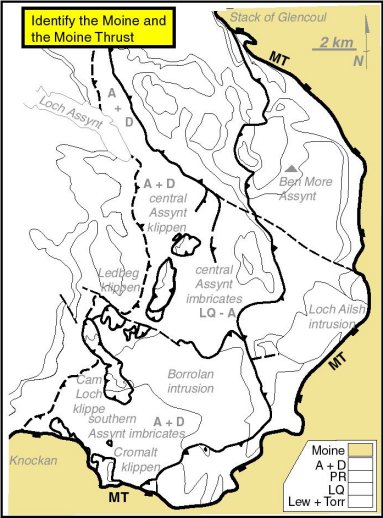

The solution is provided via a series of annotated maps, based on the one to the right:
